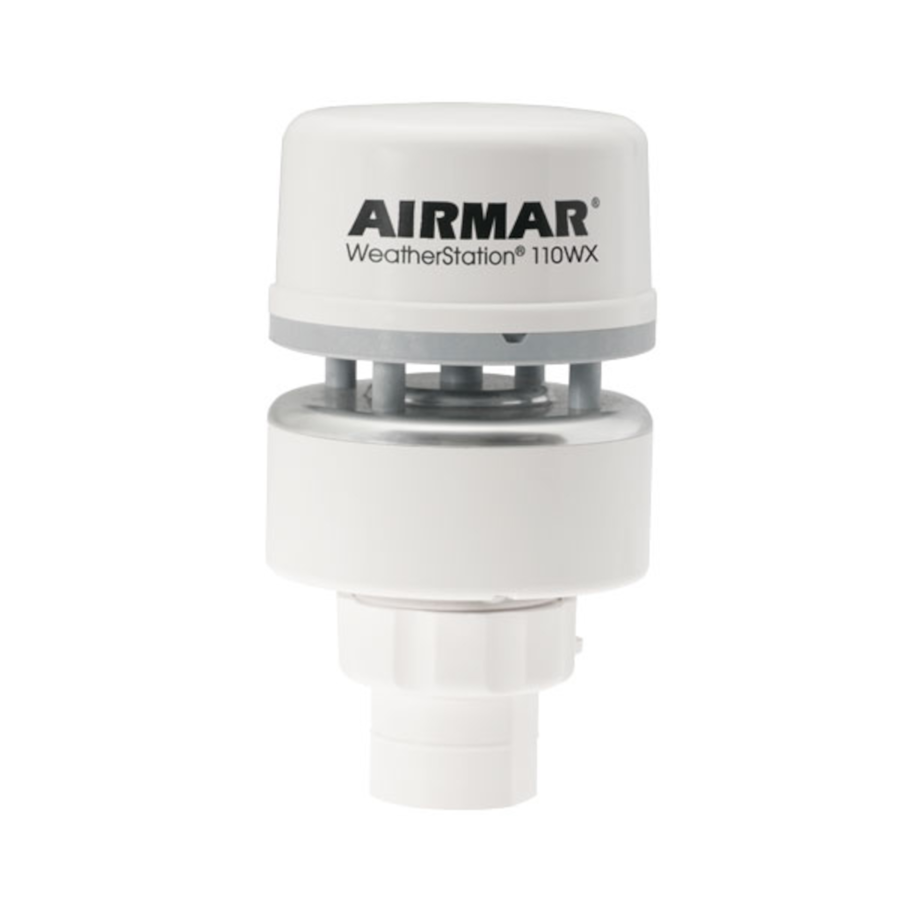

Airmar 110WX NMEA 0183 / 2000® WeatherStation® - (No Relative Humidity) - RS422 - WS-110WX
NOTE: The Airmar WeatherStations do not come with a cable in the box. The cable needs to be ordered as an option. See link below.
Model 44-823-1-01
Airmar WeatherStation Cables and Accessories

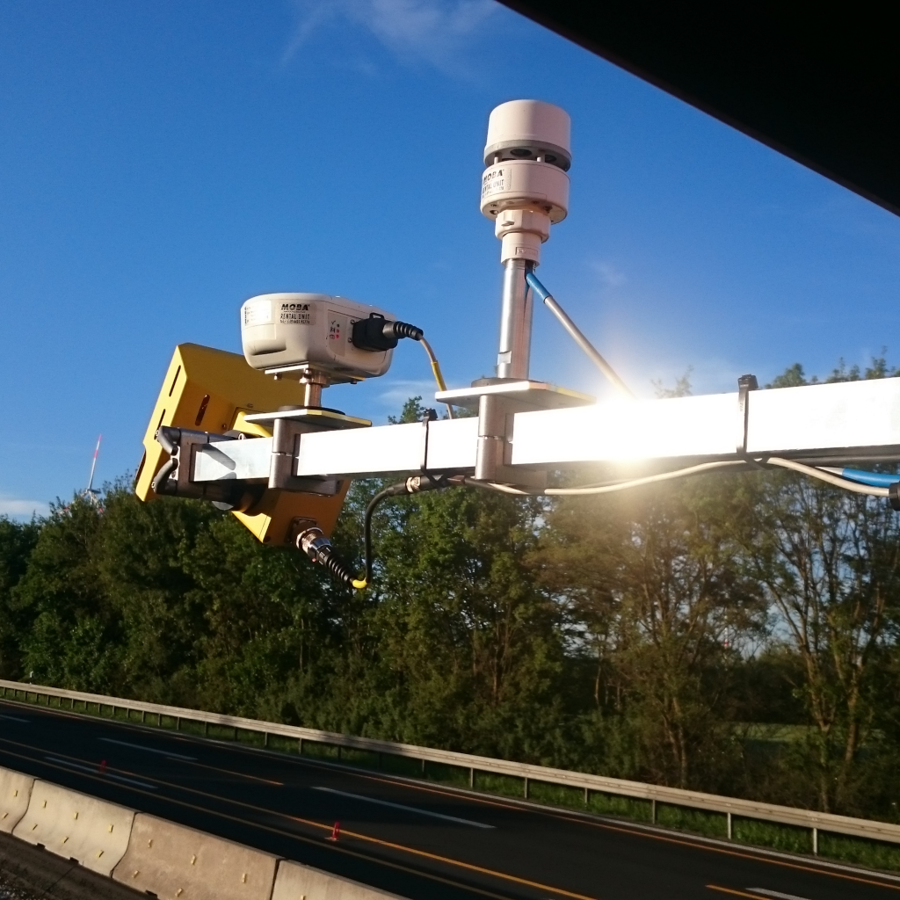

The model 110WX is Airmar’s solution for marine or land-based, stationary, weather-monitoring applications. The 110WX gives wind speed and direction, air temperature, and barometric pressure readings.

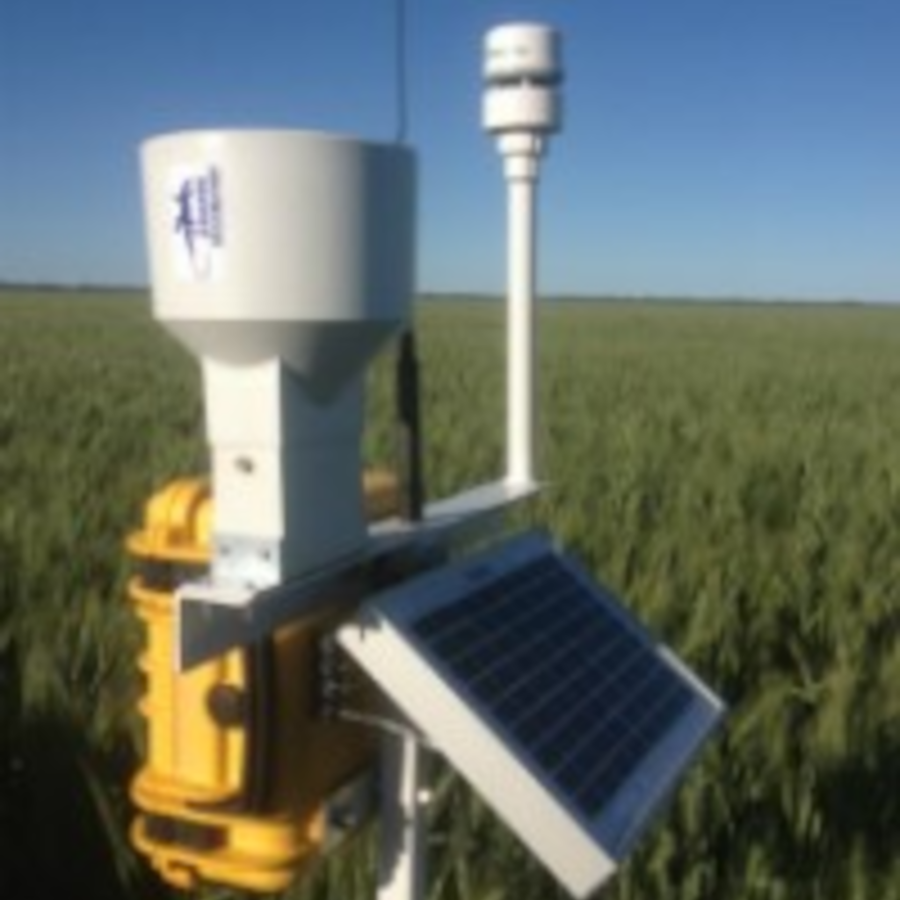

Feature rich and encased in a durable, rugged housing that is IPX6 rated, the 110WX is the right component for either marine-based positions or agriculture field locations. Reliability and performance, along with no moving parts, makes the 110WX a trouble-free and affordable choice.
Features
- Ultrasonic measurement of apparent wind speed and direction
- Barometric pressure
- Air temperature
- Wind chill
- Housing IPX6 rated for water-ingress protection
- Data output via a single cable (various lengths available)
- NMEA 0183/ASCII serial data protocol over RS-232 interface
- NMEA 2000 protocol over CAN
Options
- Relative humidity module
- Enables dew-point and heat-index calculations
- Field serviceable
- WeatherStation housing rated IPX4
- Relative humidity module
- Enables dew-point and heat-index calculations
- Field serviceable
- WeatherStation housing rated IPX4\
Specifications
Data Output
Serial Data Output Protocol
NMEA 0183 Sentence Structure – Comma Delimited ASCII Format $GPDTM GPS Datum Reference $GPGGA GPS Fix Data $GPGLL Geographic Position—Latitude and Longitude $GPGSA GNSS DOP and Active Satellite $GPGSV Satellites in View $GPRMC Recommended Minimum GNSS $GPVTG COG and SOG $GPZDA Time and Date $HCHDG Heading, Deviation, and Variation $HCHDT True Heading $HCTHS True Heading and Status $TIROT Rate of Turn $WIMDA Meteorological Composite $WIMWD Wind Direction and Speed $WIMWV Wind Speed and Angle $WIMWR Relative Wind Direction and Speed $WIMWT Theoretical Wind Direction and Speed $YXXDR Transducer Measurements
CAN Data Output Protocol
NMEA 2000® Output Message Structure
59392 ISO Acknowledgement
060928 ISO Address Claim
126208 Acknowledge Group Function
126464 PGN List
126992 System Time
126996 Product Information
126998 Configuration Information
127250 Vessel Heading
127251 Rate of Turn
127257 Attitude
127258 Magnetic Variation
129025 Position and Rapid Update
129026 COG and SOG, Rapid Update
129029 GNSS Position Data
129033 Time and Date
129044 Datum 129538
GNSS Control Status 129539
GNSS DOPs 129540
GNSS Sats in View
130306 Wind Data
130310 Environmental Parameters
130311 Environmental Parameters
130312 Temperature
130313 Humidity
130314 Actual Pressure
130323 Meteorological Station Data
