Oceanic Systems NMEA2000® 4 – 20mA Pressure Adaptor - 4601

Special Order Item - Will generally ship to you in four to six business days.
$295.00
4410
+

Oceanic Systems NMEA2000® 4 – 20mA Pressure Adaptor - 4601

The Oceanic Systems’ NMEA2000® 4601 4 – 20mA Pressure Adaptor is designed to monitor any 4 – 20mA pressure source including Atmospheric, Water, Steam, Compressed Air, Hydraulic, Oil & Fuel on the NMEA2000® network.

This unit is designed to operate in a protected marine environment such as an engine room. It provides a standard NMEA2000® pressure PGN130314 over the network and is an important part of our complete NMEA2000® Monitoring and Digital Switching System.

It is fully waterproof to IP67 and ruggedly constructed for years of reliable and accurate service.

The unit comes with a detailed User Manual and is certified to the NMEA2000® network standard.

  • Convert 4 – 20mA pressure input to digital value with ± 2% FSD accuracy
  • User selectable pressure range
  • User selectable pressure source
  • Faulty sensor/connection detection (under or over current)
  • No complicated menu setups required
  • NMEA2000® micro C interface plug
  • NMEA2000® network standard

Works with the following Oceanic Pressure Sensors:

  • 4645 Pressure snubber for 1/4” G connection
  • 4636 Pressure sensor 0-350bar(5000psi) 4-20mA 1/4” G connection
  • 4635 Pressure sensor 0-200bar(3000psi) 4-20mA 1/4” G connection
  • 4634 Pressure sensor 0-70bar(1000psi) 4-20mA 1/4” G connection
  • 4633 Pressure sensor 0-35bar(500psi) 4-20mA 1/4” G connection
  • 4632 Pressure sensor 0-7bar(100psi) 4-20mA 1/4” G connection
  • 4631 Pressure sensor 0-3.5bar(50psi) 4-20mA 1/4” G connection
  • 4625 Pressure sensor 0-1bar(15psi) 4-20mA 1/4” G connection
  • 4625 Pressure snubber
  • 4621 Pressure Sensor 0-1bar ABS, 4-20mA, 1/4” BSP
  • 4620 Vacuum Sensor 0-1bar, 4-20mA,1/8” NPT

Primary PGN - PGN130314 - Actual Pressure

Electrical and Mechanical

 Operating Voltage 12 to 24 Volts

  • Power Consumption 65mA average Operating
  • Load Equivalence Number 2
  • Reverse Battery Protection Indefinitely
  • Load Dump Protection Yes to SAE J1113

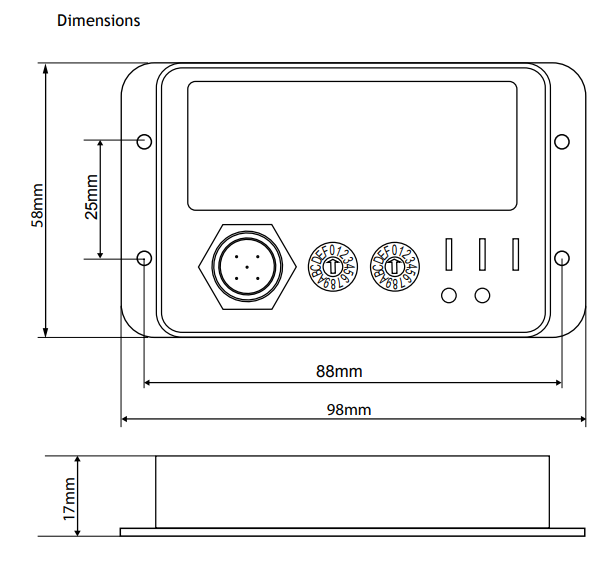

  • Size 98 x 58 x 17 mm
  • Weight 140v grams

Environmental

  • IEC06954 Classification Value
  • IEC 60954 Classification Protected
  • Degree of protection IP67
  • Operating Temperature -20C to 55C
  • Storage Temperature -40C to 70C
  • Relative Humidity 93%RH @ 40C per IEC 60945-8.2
  • Vibration 2-13.2Hz @ ±1mm, 13.2-100Hz @ 7m/s2 per IEC 60945-8.
  • Electromagnetic Emission Conducted and Radiated Emission per IEC 60945-9
  • Electromagnetic Immunity Conducted/Radiated per IEC 60945-10
  • Safety Precautions Dangerous Voltage, Electromagnetic Radio Frequency per IEC 60945-12



Oceanic Systems NMEA2000® 4 – 20mA Pressure Adaptor - 4601 Data Sheet (4601-Data-sheet.pdf, 241 Kb) [Download]

Oceanic Systems NMEA2000® 4 – 20mA Pressure Adaptor - 4601 Manual (4601-User-manual.pdf, 273 Kb) [Download]
