Noland Engineering - NMEA DX28 Dual Expander NMEA 0183

Brand: Noland Engineering, Condition: New
$220.00
30 days
DX28
5 item(s)
+

Noland Engineering - NMEA 0183 DX28 Dual Expander

The DX28 Expander is a 2-channel signal splitter/amplifier for NMEA 0183 data signal distribution. It can be configured as one 1-in x 8-out expander, two 1-in x 4-out expanders, or an auto-switching expander. The two inputs are completely independent and can operate at the same or different baud rates up to 38,400. The selectable Auto-switching feature enables automatic switchover to the AUXILIARY input when signal is lost from the PRIMARY input. A bicolor (green/red) status LED on each input shows data activity and a third LED (yellow) provides “overcurrent” fault indication

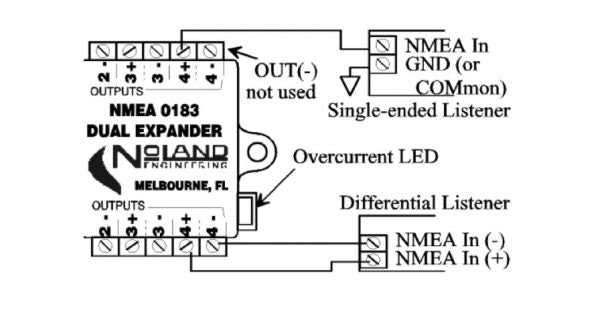

Each input drives four independent RS-422 outputs. The inputs use differential detectors, which are isolated from Power and Ground. The outputs are independent so that shorting one output does not affect the others. The two channels (PRIMARY & AUXILIARY) are identical and completely independent of each other except in “Autoswitch” mode. For a single 8-way expander, the two inputs are strapped together. In "Autoswitch" mode a loss of PRIMARY data for 3 seconds automatically switches to the AUXILIARY input. When the PRIMARY signal returns, the DX28 immediately switches back to it.

DX28 Specifications

  • Supply Voltage - 10-30 Vdc
  • Input Sensitivity - 2V (differential)
  • Input Impedance - 2K ohm
  • RS-422 Outputs - 3.5V typ. (500 ohms)
  • Data Rate - 38,400 Baud max.
  • No-load current - 20 ma.
  • Full-load current - 100 ma.
  • Overcurrent indicator - 100 ma.
  • Size - 3.5 x 2.4 x 1.0 in.
  • Weight - 3 oz.
  • Warranty- 2 years
  • Made in USA
  • NSN 7025-01-606-7150 Interface unit, Data Transfer


Noland DX28 NMEA 0183 Expander-Buffer Brochure (dx28ds_010510.pdf, 315 Kb) [Download]

Noland DX28 NMEA 0183 Expander-Buffer Manual (DX28man.pdf, 145 Kb) [Download]
