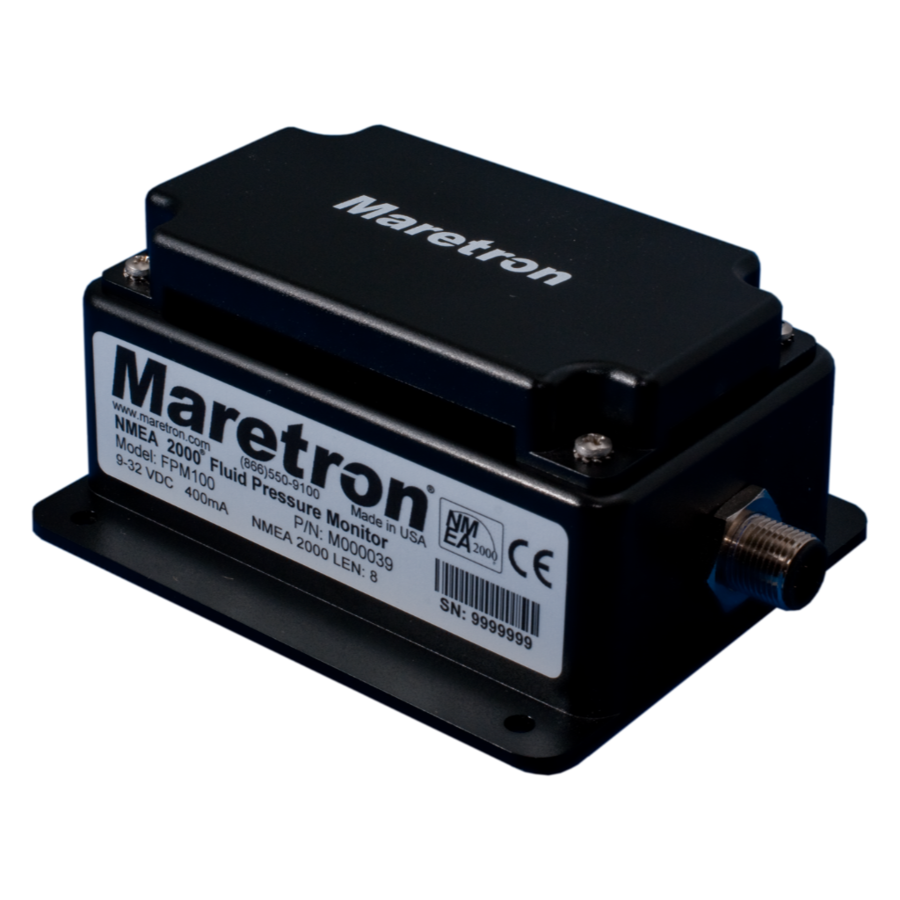

Maretron Fluid Pressure Monitor FPM100

Maretron Fluid Pressure Monitor FPM100

Regular price $369.60 USD
Regular price $420.00 USD Sale price $369.60 USD
Sold out
Shipping calculated at checkout.

4 in stock

View full details

Maretron Fluid Pressure Monitor FPM100

Maretron's Fluid Pressure Monitor is used to adapt up to six pressure transducers to the NMEA 2000® network (pressure transducers sold separately). This allows you to observe fluid pressures and tank levels anywhere on the vessel where there are NMEA 2000® compatible displays. With the appropriate transducer, the FPM100 reports either pressure or vacuum for a variety of applications including water pressures, oil pressures, hydraulic pressures, or system vacuum for detecting clogged filters.

The FPM100 also has a tank level mode, so that fluid levels in a tank can be monitored via a pressure transducer mounted at the bottom of the tank and transmitted over the NMEA 2000® network. This allows you to monitor the fluid levels in tanks that are extremely deep, have internal structures, or are otherwise not suited for other tank level sensing technologies. In this mode, the FPM100 can be calibrated for irregular tank shapes so that you know the true level of the tanks.

The FPM100 is NMEA 2000® certified so you can view any and all information anywhere on the vessel using a compatible NMEA 2000® display. The FPM100 is a key component of Maretron's N2KView® vessel monitoring and control system.

Features

  • NMEA 2000® interface
  • Adapts up to six pressure transducers to the NMEA 2000® network
  • Each channel independently programmable to match pressure transducer characteristics
  • Each channel independently programmable in pressure/vacuum mode or tank level mode

Electrical:

  • Accuracy: +/-1% FS (Exclusive of Pressure Transducer)
  • Resolution: +/-0.33% FS (Over Full Pressure Transducer Range)
  • Number of Pressure Source Types: 21 (Water Pressure, Atmospheric Pressure, Compressed Air Pressure, Hydraulic Pressure, Steam Pressure, 16 User Defined Sources)
  • Operating Voltage: 9 to 32 Volts (DC Voltage)
  • Power Consumption: 400mA (Maximum Current Drain)
  • Load Equivalence Number (LEN): 8 (NMEA 2000® Spec. [1LEN = 50mA])
  • Reverse Battery Protection: Yes (Indefinitely)
  • Load Dump Protection: Yes (Energy Rated per SAE J1113

Transducers can be found and purchased here

WARNING
Maretron pressure transducers are not approved for use with gasoline.
If you wish to use the FPM100 to monitor pressures or levels of gasoline,
you must obtain a pressure transducer that is approved for use with gasoline.
