Actisense

Actisense Female Panel Mount Wired Connectors A2K-PMW-F

Actisense Female Panel Mount Wired Connectors A2K-PMW-F

Regular price $18.95 USD
Regular price $20.95 USD Sale price $18.95 USD
Sold out
Shipping calculated at checkout.

11 in stock

View full details

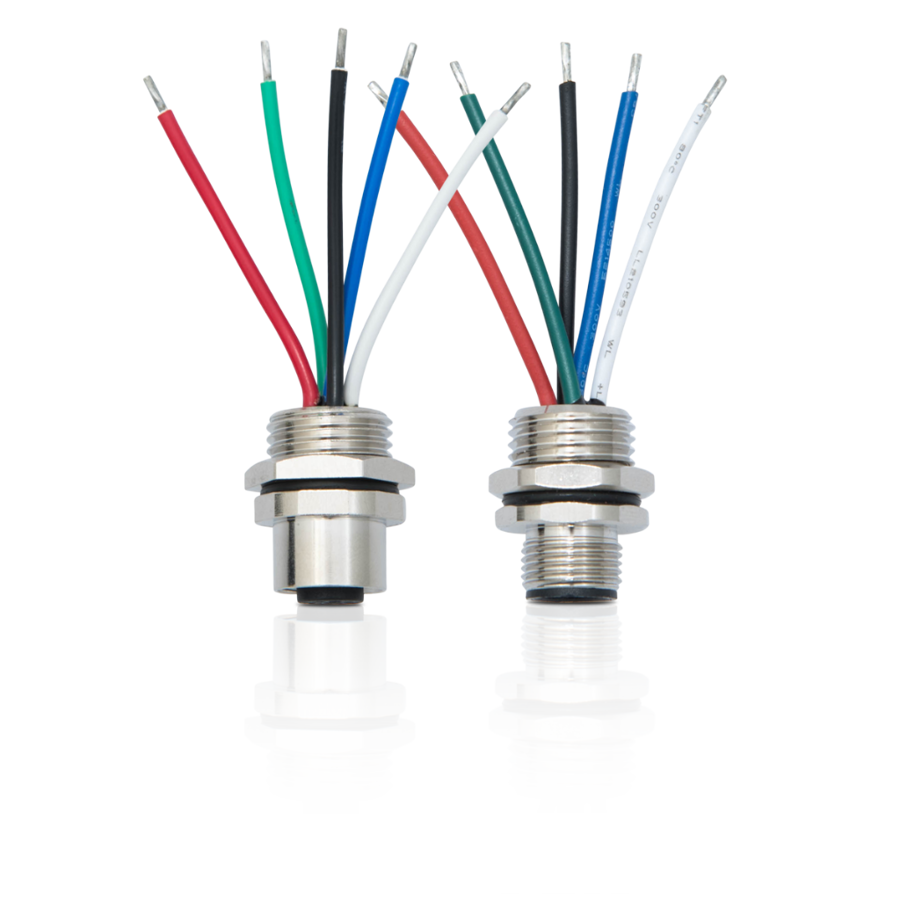

A2K-PMW-F Panel Mount Wired Connectors

Allow NMEA 2000® installations through water tight bulkheads or panels...



Panel mount wired connectors available from Actisense allow NMEA 2000 installations through water tight bulkheads (or panels) to be achieved.

Waterproof seals ensure the integrity of the NMEA 2000 connection and the bulkhead/panel.

The female panel mount wired connector can easily replace any of the existing 'drop' glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.

Part numbers:

A2K-PMW-F        NMEA 2000 micro, rear panel mount wired connector Female

A2K-PMW-M       NMEA 2000 micro, rear panel mount wired connector Male



Parameter Description

Electrical
Rated Current 4 A
Rated Voltage 60 V (AC/DC)

Mechanical
Contacts Brass, gold plated
Contact Carrier Nylon & GF
Contact Polarisation Standard M12 - "A" - Polarisation
Mating Thread M12
Female O-Ring Seal Rubber Green
Housing Brass, nickel plated
Mounting Thread PG9 (see diagram)
Mounting Nut Brass, nickel plated - PG9
Mounting Hole Dimensions 15.3mm (diameter)
Wires 18 AWG (stripped and tinned)
Wire Jacket PVC
Weight 20g

Approvals and Certifications
Protection IP67 (when mated)
Operating Temperature - 20°C to + 90°C
Connector Specification Meets IEC61076-2-101
NMEA 2000 Pending
RoHs Compliant
UL Certified (E321413)
